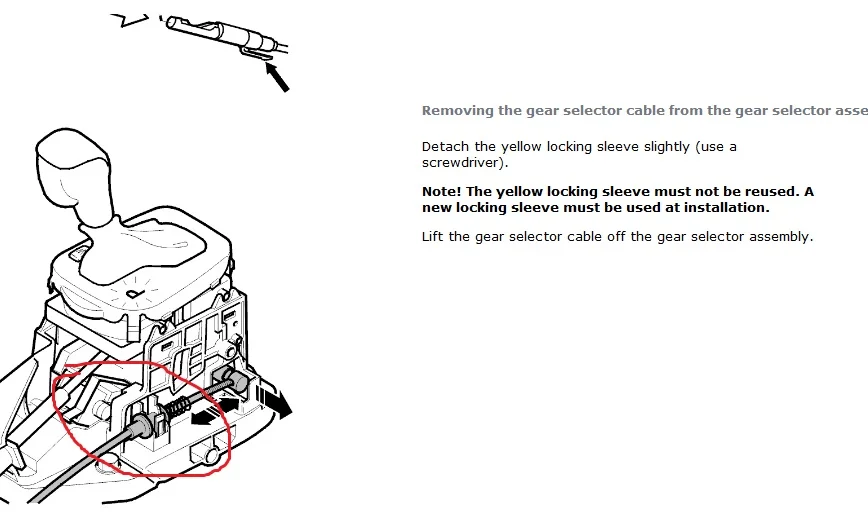

Ive got a 1st gen XC90 that I was working on, when I hit a part that made a "pop" noise, I attempted to push it back in with no luck, and all I can find on the whole-ass internet is this image which warns me to replace it, but doesnt tell me what it actually is, as volvo seems to believe there is no "locking sleeve"
The consequence I'm seeing from breaking this part is that there is no lock-out after turning off the car, I can freely shift back and forth no problem. Anybody know what the fuck this stupid thing is so I can order a replacement?

>>28492672 (OP)
Have you looked at rockauto and Amazon? Or your local dealer parts department?

>>28492677
yeah, search got no results on RA and browsing I couldnt find it either, nobody around here has euro parts, its f150 country.

>>28492672 (OP)
Why don't you just go to a volvo dealership and ask them? Looks like a shifter cable bushing to me.

>>28492702
My nearest is over an hour out, it will have to wait till the weekend, but its not a bushing, its a plastic cap that seems like a retention part, it may have something to do with the "sport mode" because shifting over to it I feel a slight bump.
I was able to get the shifter to lock out again, but I cant get the yellow "locking sleeve" to return to its original position.

https://parts.lehmanvolvocars.com/p/Volvo_2005_XC90/Adjusting-device/42898133/9480039.html ?
https://parts.lehmanvolvocars.com/p/Volvo_2005_XC90/Claw-AutoTRANS-GT-Gear-Selector-Passenger-Compartment/42839979/8675629.html ?
https://parts.lehmanvolvocars.com/p/Volvo_2005_XC90/Locking-arm/42842459/9480720.html?
https://parts.lehmanvolvocars.com/p/Volvo_2005_XC90/Clip/42800042/30711794.html?

here's the page. It should be on here.
https://parts.lehmanvolvocars.com/a/Volvo_2005_XC90/42903366__5701159/Gear-selector-passenger-compartment/GR-372615.html#15

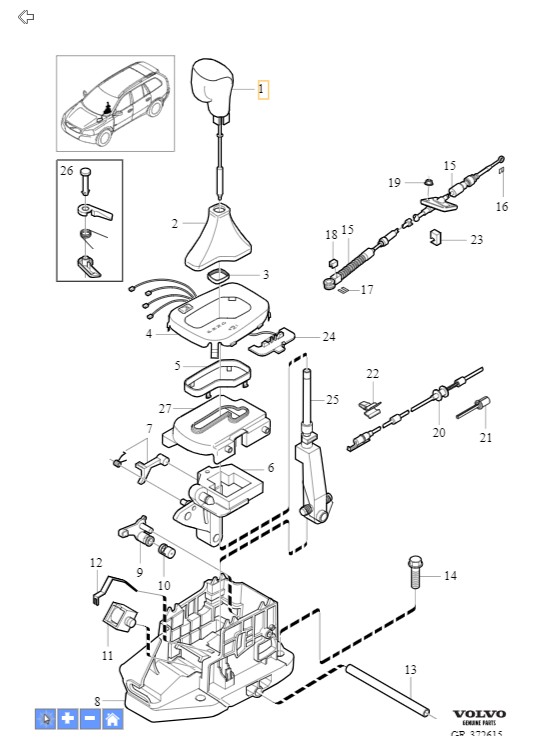

I have access to VIDA. My diagram is a little different, can you pick out what you need? I'll give you a part number

>>28492948
>>28492934
Shit, thanks guys, it was actually #10:
>https://parts.lehmanvolvocars.com/p/Volvo_2005_XC90/Clip/42800042/30711794.html

fucking hell its just called "clip", why did that image call it a damn "locking sleeve"

>>28492981
it does look like a sleeve. parts websites have very simplified names, generally. There's probably 10000 different "clips" but they're all named clips.

>>28492672 (OP)
scrap it and uber everywhere

>>28492983
Yeah I guess the fault isnt with volvo, since its their part, the fault is with the goobers using an utterly generic term like "clip".

>>28493009
the only option more expensive than the volvo itself, lol.
