This is my first overclock. I've been trying to push my little i5 as far as it will go without crashing or generating errors during benchmarks.

So far, I've managed to squeeze the chip for 4.50 GHz at 1.47v. This is just from adjusting the core multiplier and vcore. I don't know anything about load-line calibration, but I'm interested in learning more about it, especially if it will help me sustain a stable overclock.

Under load, temps have remained below a maximum of 90 C and an average of around 80 C. For benchmarks, I've been running OCCT Linpack 2021, Prime95, and Cinebench for around 15 minutes each for every step up in frequency and/or voltage.

Counting each increment, this has been very time consuming, but I've been enjoying the learning process, and I hope to learn a little more from experienced overclockers by sharing this post.

My concern at the moment has to do with temps and power consumption while performing light tasks.

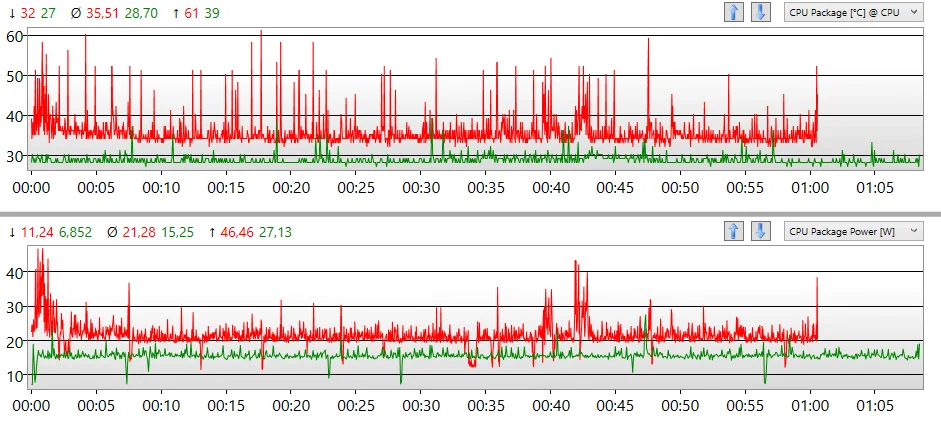

The below chart features a comparison between stock settings (green) and my overclock (red) while watching a stream on Discord with a few browser tabs minimized in the background. I ran each log for around one hour.

(see pic related)

PLEASE NOTE: The above CPU overclock includes a memory overclock of 3.20GHz at 1.35v. Stock CPU metrics were logged with stock memory frequency and voltage.

I'm concerned about how "spiky" this wave is. Should I be concerned about this? It suggests to me that my overclock is unstable, but I really don't feel like I know what I'm talking about.

If I'm wrong, then what can I glean from this information? If I'm right, is there anything I can do, other than stepping down my multiplier and vcore, to stabilize my overclock? Is this when I should be thinking about load-line calibration, or would that make no difference?

Thanks for your time. I can include additional charts if necessary, as well as provide links to the log files themselves.

>6th gen
How long has it been since it was last (re)pasted

>>1533458 (OP)
You should be concerned, but this doesn't imply instability; crashes and errors do. The behavior you're observing is normal, but you should still try to lessen the spikes. Make sure the voltage you're running is safe for 24/7 operation. Better yet, make a light overclock that has no voltage increase (only power constraints and multiplier), and a full on OC that is still safe to run without great chip degradation. You need to check that clocks actually reach the speeds you've designated, and that benchmarks improve. LLC would help you reach lower voltages at the same clocks without compromising stability, but it is essential that you learn what it does and how the settings affect the voltage on your specific mobo model. https://www.youtube.com/watch?v=bUaP0r5-xhY

>>1533576
A few weeks ago when I started this.

>>153661
Thanks for the informative reply. I've definitely been trying to learn as much as I can BEFORE doing anything with these settings, including LLC. I spent an inordinate amount of time making sure I understood what I needed to know before I even started fiddling with the core multiplier and voltages.
