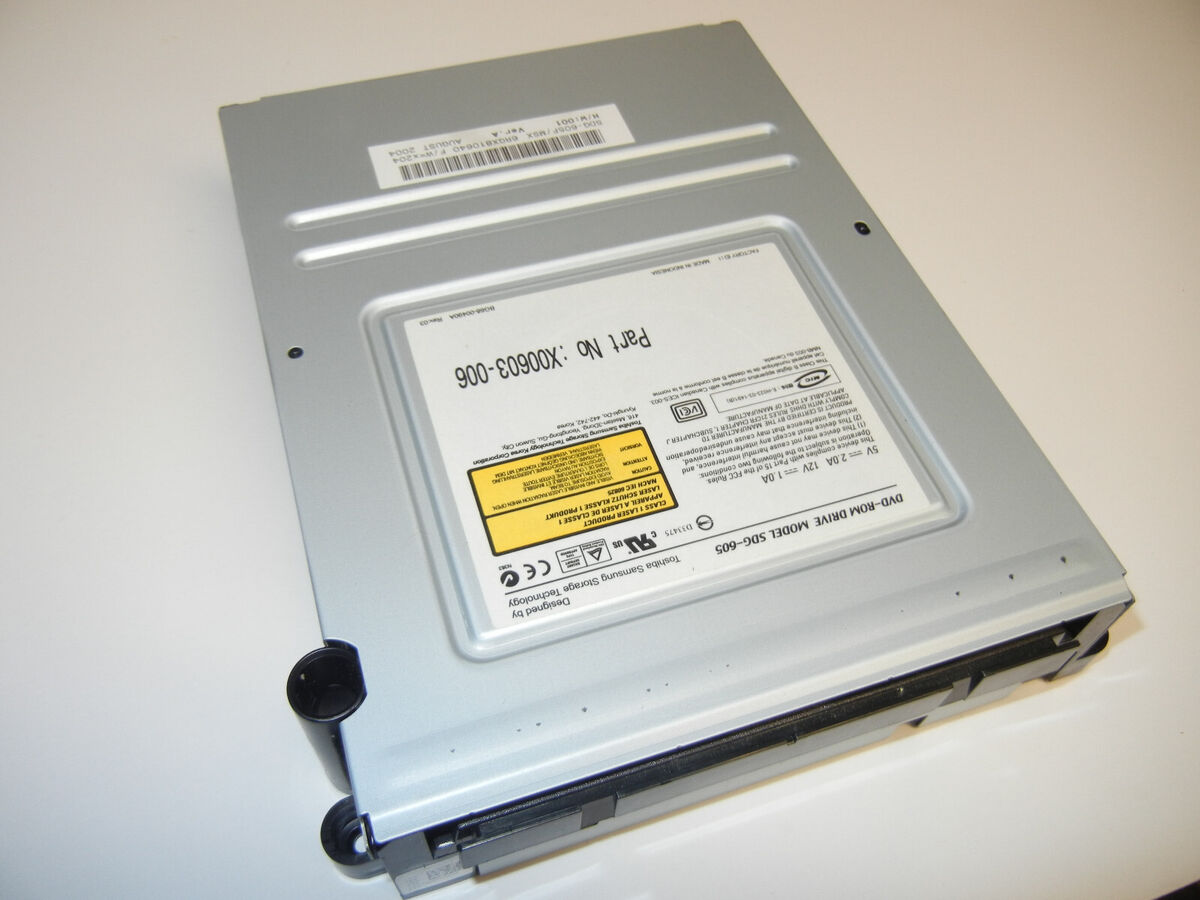

Its a samsung drive, I have tried cleaning the lense and used a very thin layer of white lithium to relubricate the laster parts, but it still wont read discs. I see the clamp at the top of the DVD drive is loose and moves around a lot, could that be the cause? Its been forever since i fixed an og xbox.

>>2928868 (OP)
relubricate the laser parts* sorry im a phonefag.

>>2928868 (OP)
Try tweaking the potentiometer on the actual laser a little bit. If you don't have a multimeter, make a mark with marker and move the potentiometer like, a half millimeter at a time. Just barely a turn. Try not to go too far with it. If it isn't resurrected after moving it a full 2 millimeters, it's probably toast. You can try and look up the part number on the laser to find a replacement, but last time I tried on a Thompson drive on Ebay/Aliexpress, I didn't have any luck unlike PS1/PS2/Xbox 360 lasers. Don't know if anyone makes a new laser for the Samsung drives or not.

>>2928871
Me again, most of the time DVD lasers have 2 pots, one for CD and the other for DVD. You have to know which is which.

>>2928871
Yeah i was looking for my multimeter couldnt find it.

I also accidentally held the drive upright and the tray came slamming down too, maybe that misaligned the laser? My music CDs work but neither of the 2 games I have do either.

The discs kinda start n stop when its in the disc drive too, the spindle thing for the discs didnt seem that rough when i tried moving it though. I'll hopefully get my multimeter soon, adjusting the pots the last resort though

>>2928875
Yeah man, if it's reading CDs and not DVDs then it's likely it's going to need a pot tweak. I don't know offhand what the spec is so you're going to want to search around for a good video or something. It's been a while since I've had an Xbox. Best of luck anon.

>>2928877
Fair enough. Sucks ass looking for info now, maybe ill try that OG xbox forum for advice on the specs cause consolemods doesnt have it for the samsung drive sadly. I got this for a good deal but it was easier to fix these back in the day.

>>2928878
That might be the way to go. Can you see a sticker with a part number on the laser if you pop off the bottom plate? If so, can you post a steady pic? I'd just like to look around on ebay or aliexpress for shits and gigs.

>>2928879

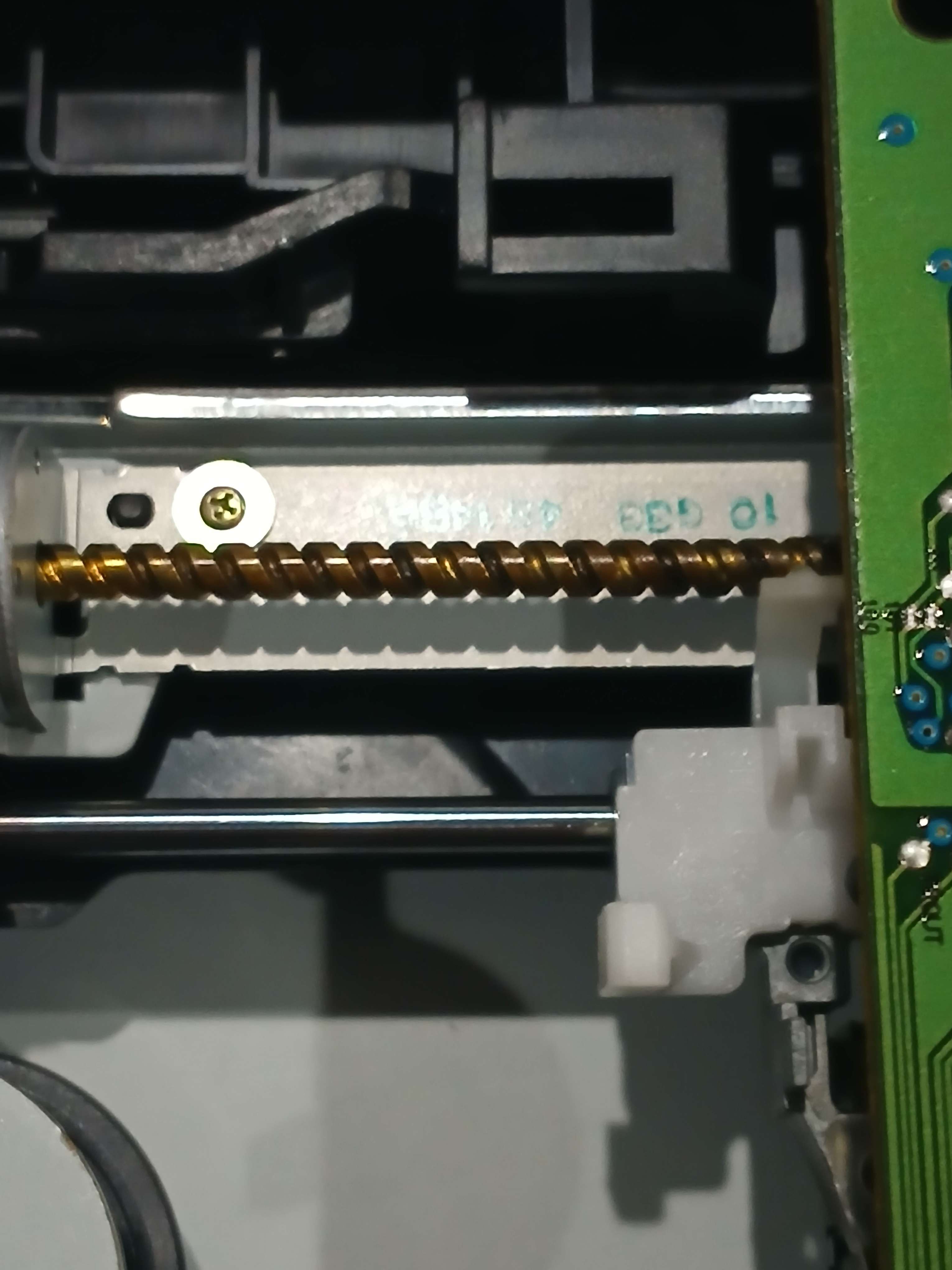

only pick of the bottom I have, had to stop working on it for the night already spent too much on just the disc drive. At least none of the capacitors were leaking on my board yet.

>>2928880
I meant the back of the laser. Maybe post one up tomorrow if you have the time, if not I'm sure someone on the forum you were talking about could help you out more than I could. I'll bookmark the thread just in case. Goodnight and God Bless dude.

>>2928882
yeah im just having some beers trying to forget the headache ive had so far. Not sure if the lasers been moving i think it has, i went really really light on the white lithium grease. Might have time tomorrow night if not it might be a day or two.

Or get a 2TB drive and download every Xbox game ever?

>>2928868 (OP)
you cannot adjust align that without an oscilloscope and manual. the laser is probably burned out. toss it.

>>2928901
Don't I need to run tony hawk?
>>2929069
Could have or maybe the spindles gunked up with old grease. The drive wasn't opening because the laser rails were too gunked up from the old grease. The spindle moved a little rough when I tried earlier, but I can't look at it till Saturday or monday and the only lubricant I have is white lithium.

>>2928868 (OP)
sometimes these things are simply burnt up. i would look for an ODE.

>>2928868 (OP)
Drill a hole in it

>>2929288
True, but the inside looked pretty clean, besides the old grease on the drive. Judging by the saves it doesn't look like it was used a lot. Gonna look at the spindle and regrease it. if that doesn't work then a pot adjustment.

>>2929296
sometimes the laser is done for. if the pot adjustment doesn't work i'd try finding a laser that matches the power specs on digikey or mouser.

>>2928882

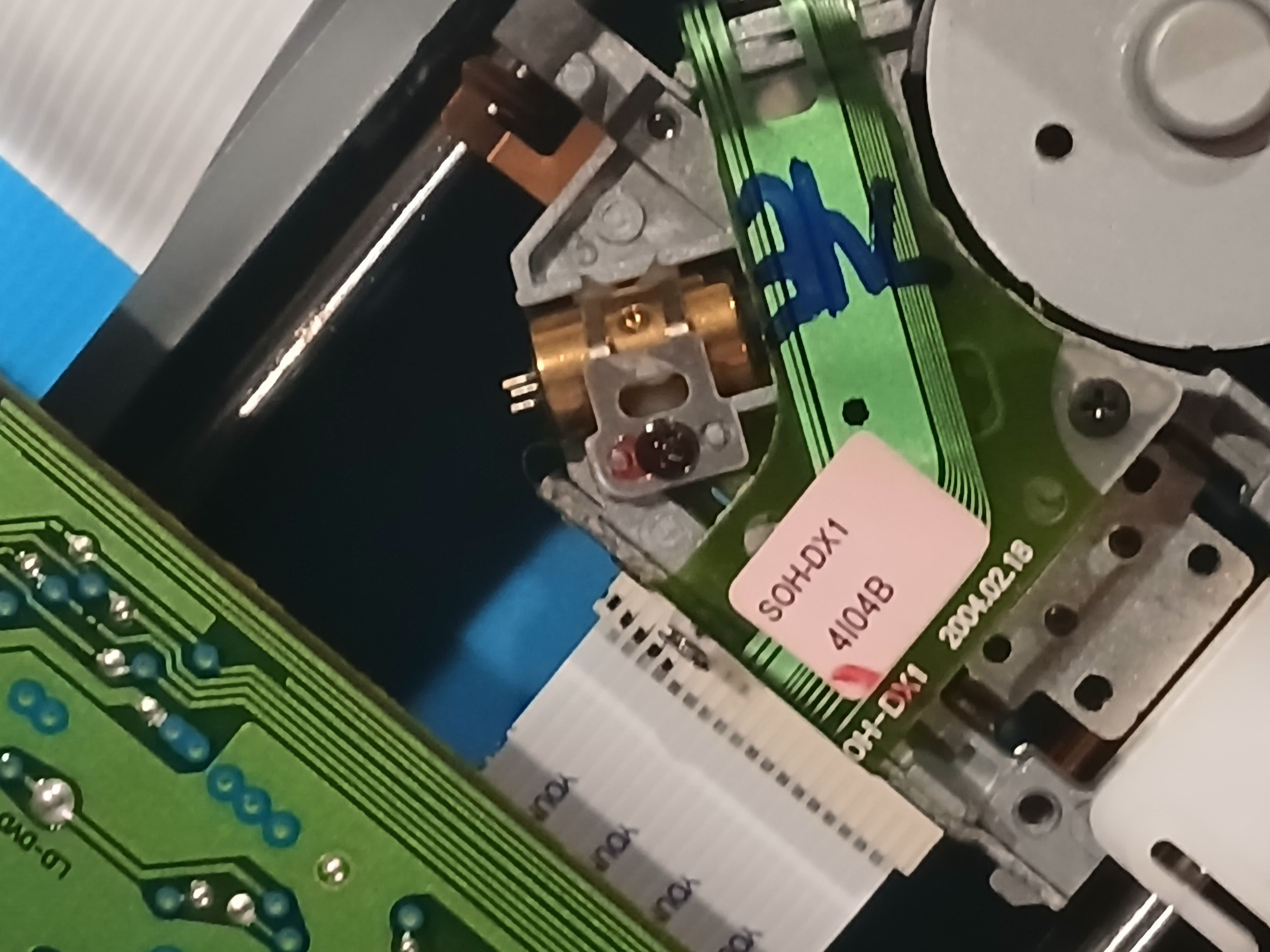

Here's the back of the laser. I've tried relubing it and cleaning it again but no dice, now it can't even read music CDs. Finally found my multimeter gonna try a pot tweak

>>2929717
Scratch that, it just started working randomly. I ran it without the cover on to see if the laser even produces a light, now it's running discs fine.
