Have you built anything meaningful with logic gates yet?

>>105903070 (OP)
You can't build anything meaningful without them

>>105903070 (OP)
if OP is RETARDED and GAY then SAGE the options field

>>105903080
>t. didn't built anything meaningful with them

>>105903070 (OP)
I did the nan to tetris stuff but the second part of the course is kinda boring, the assembly language kinda sucks.

>>105903070 (OP)
We designed and implemented mips-like accumulator machines in a logic simulator during uni, I don't think that was meaningful tho

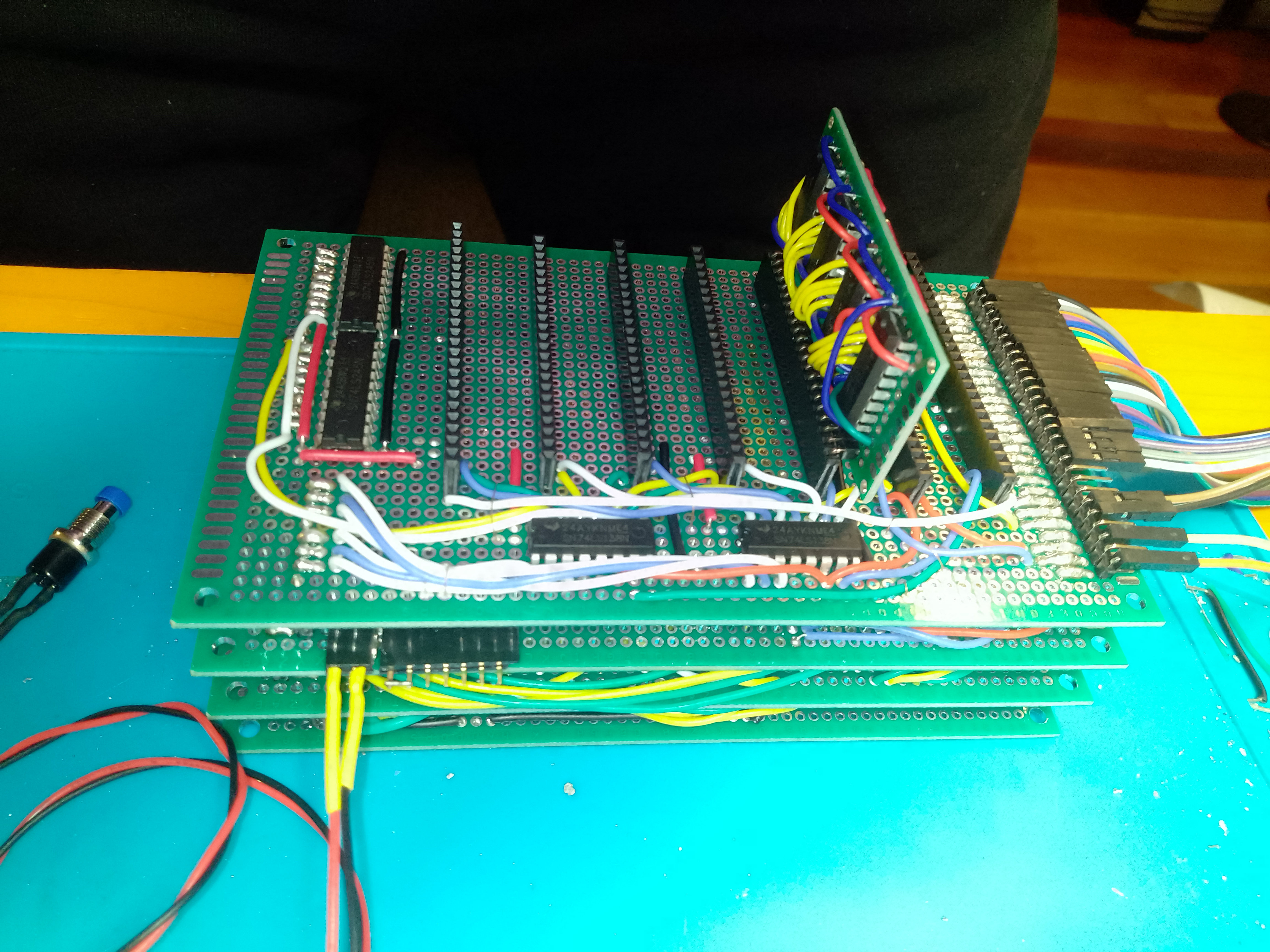

Pic related, still a work-in-progress as you can see.
When completed, it will be a homebrew digital cpu made of discrete components.
The rest of the system (rom, ram and io) will probably sit above it, like a tower.

>>105905220
How did you summon your inner Jim Keller?

>>105905246
Originally it was done entirely as a simulated project in logisim, basically a personal project to see if I could do it (I had studied computer architecture at uni, which means I should have been able to).
Plus, it is a cool and interesting project per-se, designing an instruction set and everything.
Looking at the source files, it was around winter 2019 or so.
Pic related shows a later design iteration.
Other than the circuit itself, I wrote (in Python) a rudimentary assembler which would compile my assembly source into rom images.
I wasn't aware of Ben Eater's youtube series at the time, but I came out with an architecture which is fairly similar to his own. (much later I copied some of his hardware design choices, such as picking the 74LS173 register).

The project basically stayed a pretty little simulation until late this April; I had been toying with the idea that, with some simplifications, it would perhaps be possible to build it physically.
(i.e. the overpowered fantasy ALU had to go, replaced with a design using 4 8K ROMs).
I decided to wire it up all by hand on protoboards; it's a pleasant pastime, but the final product tends to turn into a fine mess of wires.

Thanks for reading my blog

>>105905517
You are too good here,mate.

Minecraft calculator

>>105903070 (OP)
No its my job half the time to debug them for retarded customers so I'm no longer interested in this shit in my free time.

>>105905220
>>105905517
Pretty nice anon, I learned digital electronics but never made a big project like this

>>105903070 (OP)
Does a cascade multiplier in verilog count?

>design cool CPU in a logic simulator
>get too fucking lazy to write a program for it

>>105903070 (OP)
>meaningful
lol, lmao even.
