Deleted the Garbage File Edition

/gedg/ Wiki: https://igwiki.lyci.de/wiki//gedg/_-_Game_and_Engine_Dev_General
IRC: irc.rizon.net #/g/gedg
Progress Day: https://rentry.org/gedg-jams
/gedg/ Compendium: https://rentry.org/gedg
/agdg/: >>>/vg/agdg
Graphics Debugger: https://renderdoc.org/

Requesting Help
-Problem Description: Clearly explain your issue, providing context and relevant background information.
-Relevant Code or Content: If applicable, include relevant code, configuration, or content related to your question. Use code tags.

Previous: >>105943307

THREAD THEME:
https://www.youtube.com/watch?v=YJVmu6yttiw

>>105963073
Progress:
- Computing multi-stage projectile tick and travel rates server side vs the local client animation and that timing is in place, still in progress. I precompute the sum time of the animation/frames in each stage and cache that, during the spell cast I add the travel time based on spell speed to that.
- A* pathfinder is now bidirectional so I can identify impossible paths quicker. I have other flags for adding randomness or inefficiency to paths so its not always the same predictable pattern, which I will probably have NPCs use.

>>105984205
It's pretty fun to make random shapes and throw boosters on them in different configurations to see how they spin around.

>>105984427
I don't want to pay for that.

Why the heck is that even a thing?

>use C
>try to look up anything
>C++ shit
I'm gonna go crazy.

>>105993119
Is ygg pronounced like yeah-gee-gee or yuh-gee-gee or is it just like the word young?

>>105994453
Phonetically "igg" from the Yggdrasil (World Tree) from Norse myth

>>105994655
But I also say why-gee-gee in my head constantly, so yeah

>>105994655
>>105994672
Whats it supposed to be

>>105994699
"igg engine" is the cannon and official way to say it

>>105994731
I mean the game

i will not use smart pointers

>>105994734
Ah, I misread. A multiplayer sandbox with either a "build your own" adventure or player other templates. The primary vanilla game server will be like an RPG with an adventures guild, shops, etc. But we have a fully destructible world so there is a minecraft-ish experience, and maybe you toggle a feature like "enable zombies at night", etc- giving you your own experience between everything you can set. Or maybe you build a roguelike dungeon server and host that. Clients will connect and experience "your creation". The game server is authoritative, but even that is intended to be a toggle (saves us some CPU cycles on security checks) in case it was just you and friends playing.

>>105994804
In my head I don't see why a player can't even have a "shop keeper" experience, or a "habbo hotel" clone. I have some really fun ideas for ygg engine opening demo that I don't want to spoil.

Does anyone know where to find prebuilt binaries that have all the debug features enabled?
http://angleproject.org/

>>105992556 (OP)
where's grok 4 in the OP? why are ai seethers trying to sabotage solodevs?

>>105995636
I baked the bread and I removed the garbage that was added

>>105995227
You don't need those debug features, just enable the debug context and enable the debug callback, and enable address sanitizer if you have not already.
You would only compile Angle yourself with asserts or whatever if you were trying to diagnose a problem inside of angle.
If you aren't crashing (with Angle or native GL or GL ES) or you aren't getting debug callbacks, whatever angle "debug features" offer isn't going to debug whatever issue you have, it's time to use debugging tools like RenderDoc or Nvidia Nsight and inspect your data or look at what your code does different than a working opengl example.

>>105993119
looks nice

>>105995636
fuck off shitbrain

anyone using odin here? I trying to come with a speed up the cloth example from last thread one way was to do instancing with raylib but that requires the data to be in some kind of continuous array is it possible to get one from the SOA or is that just compiler magic and the data isn't actually laid out in one continuous chunk? i.e. in the example below there is no way to access cloth.points.pos as a continuous array right? I guess data pointer+offset will have to do...
Point :: struct {
pos: rl.Vector2,
prevPos: rl.Vector2,
initPos: rl.Vector2,
isPinned: bool,
isSelected: bool,
}

Stick :: struct {
p0: int, // index
p1: int,
isTeared: bool
}

Cloth :: struct {
points: #soa[dynamic]Point,
sticks: #soa[dynamic]Stick,
}

>>105992556 (OP)
Started a basic Vulkan tutorial, I haven't done much coding recently at all and never really got too into graphics programming so this will be an experience, first impressions are that people weren't lying about it being a lot of code but I can see the potential in it.

>>105996499
grok 4 heavy works well for boilerplate bs

>>105995717
>there is no way to access cloth.points.pos as a continuous array right?
why?
#soa directive tells the compiler to allocate the data with a slightly different layout but apart from that, its just your regular array. Its perfect for doing ECS stuff.
Also, there are a few things I'd like to point out.
if you are looking for performance, ditch dynamic arrays. They will do implicit allocations and depending on the usage, it can be slow. Calling make() and delete() on []Point and []Stick arrays is very straightforward.
A reason why cloth.points.pos might not be working is that in the cloth sim example, they used an array of pointers for each of points and sticks while calling new() for every individual element allocation and appending that with dynamic's implicit allocator. Depending on how the OS ends up allocating these points, there will a hit on performance due to cache misses.
You are using the direct struct type themselves as arrays so you'll have to do cloth.points[0].pos to access the pos element at that particular index, after prior memory allocation with make(), of course.
If I understood what you are trying to do correctly, here is a sample code
Cloth :: struct {
points : #soa []Point,
stick : #soa []Stick,
}

cloth : Cloth
cloth.points = make(#soa[]Point, width * height) // allocate cloth's WIDTH * HEIGHT number of Point types in soa
cloth.sticks = make(#soa[]Stick, width * height)

// you can access and assign the values to points like you would with normal arrays
cloth.points[0].pos = {10, 10}

// you can also access the elements of structs as if the elements were arrays
fmt.println(cloth.points.pos[0]) // prints [10, 10]

// but don't try to assign values the latter way, there is an llvm backend issue with this syntax
cloth.points.pos[0] = {10, 10} // avoid. doesn't always work. bug.

>>105995717
based saar

>>105996246
>>105997028
I focked up. Here.

>>105997028
soa works already its not much faster (1400 vs 1800fps on my pc) since drawing the sticks was the main bottleneck so I wanted a way to get a slice from the soa which I have figured out. You need to do view := cloth.points[:len(cloth.points)] and then you have your normal array which you can pass to opengl for instanced rendering without trying to use pointer + stride.
Anyway I saw the blog post allocating everything I don't get why he did it suppose he likes to have stick adjusting the points directly I guess. I didn't bother with that. https://pastebin.com/6fb7sXpD

>>105998283
>have your normal array
*slice

>>105998283
>>105998293
>its not much faster
that's to be expected considering there isn't much going on in the simulation to make the performance different highly significant.
Slices are cool. I always rely on them when parsing. Under the hood, its just a pointer and length.
https://github.com/odin-lang/Odin/blob/master/base/runtime/core.odin#L400
Its very convenient to snatch a chunk from an array and pass it around like without any hassle while the language implicitly takes care of bounds checking for you. A good QoL improvement over C's array/pointer shit.

how do you guys sort your render items? by material, pipeline state, model, or something else, and in what order?
im debating about ordering by pipeline state, then model, and then material. since each model can have multiple materials

>>106000243
by shader program, everything else is moot I think

>>106000243
randomly opaque followed by unsorted transparent followed by 2D directly in the color buffer

Reading through "Hello triangle" from learnopengl dot com

holy shit what is this shit, should this really be this fucking hard?
I'm fucking going insane. I barely understood a thing. Ended up with 200 lines of boilerplate and not knowing if I should move on.

>>106001164
try raylib

>>106001164
You should be familiar with a game engine plus the asset pipeline and c++ before going into learnopengl

>>106000707
>>106001007
dont you guys use multiple meshes, materials, shaders, or passes?

>>106001164
Try Vulkan kek

>>106001437
Yes but I'm not even sure if it's worth sorting by mesh and material, that's advice from the 2000s, would it even make a difference in current year? Test it and find out

>>106001453
so you just rebind everything for each draw call?

>>106001486
My current renderer sorts by shader program, mesh and material but I don't think the latter two actually matter that much from the tests I've done

No shaders, no OpenGL, No Vulkan, No Metal. Where does this lead me to?

>>106001520
directx7

>>106001520
glide

>>106001503
it might be worth it for larger scenes, ill have to stress test it at some point, i do think it at least saves on entries in the descriptor heaps

Anything but writing to the framebuffer directly is the wrong answer btw.
(But I forgot about DirectX though, Gabe's fault we are stuck with it)

>>106001164
why don't you just ask about which parts you don't understand here

>>106001164
>200 lines scares me

>>106002114
Almost everything.
But thanks for asking. For now I'm reading other stuff, trying to reinforce my C++, in which I feel comfortable but maybe it is still a good idea to red more into.
I'll try to watch a video tutorial on the contents of "Hello triangle" to see if I can grasp it a little better, if not, i'll start making questions here.

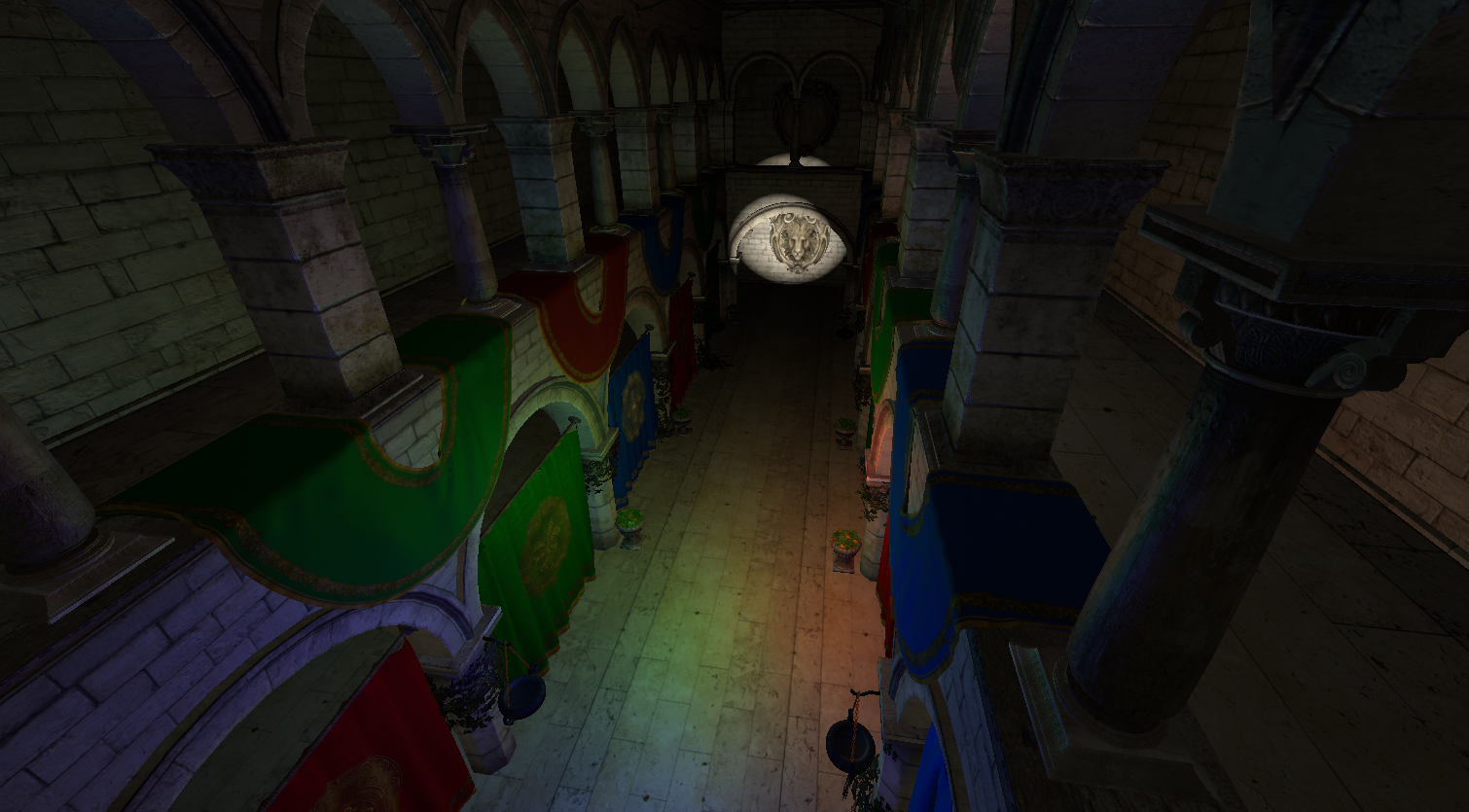

I got the three light types going. I love Shader Storage Buffer objects. Still lots to do.

>>106001486
probably just material (shader + textures), mesh usually don't repeat unless its a 'multi-mesh' system with a single draw call for shit like foliage.
really you should make 3 systems, one by single shader bind, other by single texture bind and other by binding again and again and let us know the results

>>106002569
idk the terminology, but by multi-mesh do you mean a single mesh like for example a house that has one set of textures for wall and another set of textures for doors, forcing you to split the rendering of it up into 2 draw calls, one for each set of textures?

>want to make my game in Jai
>no Jai
>think about doing it in Odin
>but feels like I'm just doing it in the meantime and then have to port once Jai releases (unless it sucks)

>>106003072
the chances of Jai sucking are almost zero

>>106002651
no, i mean multiple copies of a single mesh but each having a different transform, an example is grass quads, all have the same shader and mesh, but with different transforms

>>106003216
Yeah, I know, but the chances of it coming out in 2025 are about the same.

Surely it's close enough that he can push an open beta at least?

>>106003072
There is nothing special about Jai, you might aswell use Odin

>>106003237
>Surely it's close enough that he can push an open beta at least?
It's been close enough for that for over 5 years but he doesn't want just anyone to use his super special programming language

>>106003288
Wrong, people do get to use it. He just isn't releasing it publicly until Sokoban is out which is really soon.

>>106003285
yes.
Apart from its comptime and insanely fast compile time, there is nothing special about Jai.
Its funny but allowing instruction to run at compile time like they're part a scripting language itself surprisingly worked well for Jai.
But honestly, Odin is good enough.
I wanted something that is not C++/Rust/Zig slop for gamedev and Odin is just perfect.
even if Jai comes out, I don't think I'll bother now. I'd rather fork Odin and work on it myself and chill.
>>106003237
2 more weeks saar

>>106003759
He has no reason not to release it publicly except his own elitism

>>106003774
I don't really see the point in the comptime shit
Like yeah it's nice, but it's not that useful

>>105993119
Showing the path randomizing/shuffling, which now the RNG can be seeded as well

>>106003791
Jai's meta programming is very flexible.
Its not just simple pre-processor shit like in C that is very limiting. Its like an entire scripting language with no restrictions that executes during compilation.
luckily, GingerBill is working on introducing something as flexible as that into Odin but its still in design phase. We'll eventually see something like that in Odin and I don't mind if Odin takes a second or two more than Jai would to compile my code so I probably won't be missing anything.

>>106004202
peak saar

>>106004546
I know what Jai metaprogramming is, I just don't see the point

>>106004567
I can make use of it.
I do some reflections on types at runtime during startup that can be done at compile time and reduce a little overhead.
And if meta programming is as flexible as Jai, I can generate cache friendly strcuts and not rely on dynamically allocation a memory chunk somewhere in the next continent of ram. A retard like me would go very far with this over-engineering friendly features.

>>106003228
thats just instancing

I can make a game engine in vulkan but Im too retarded to make a website

>>106003288
>>106003759
>>106003779
>only allow a few people into the beta because you don't want random webshitters etc. in it
>let fucking randy in

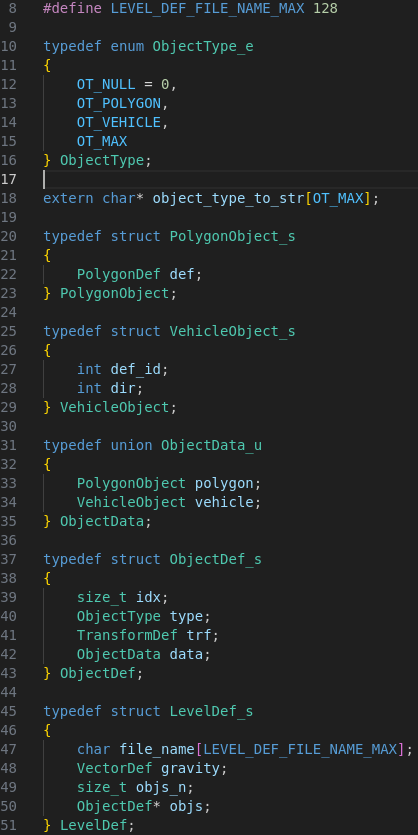

Polymorphism in C. How is it?

>>106007260
its stupid

>>106007260
That's a tagged union, hardly polymorphism.
I will say, I really hate the typedefs.

>>106007388
this

Bump

>>106007260
i dont like/understand this C retardation of having to say typedef and name the struct twice

mfw my blender-like is already at 1.2k locs

>>106009768
Blender like huh? I've been kind of wanting to make a 3D modeler and would be interested to see your progress.

>>106010002
See
>>105960216
>>105977961

>>106009740
for some reason "struct S" is the typename instead of just "S" so they need to typedef it
classic pure c retardation

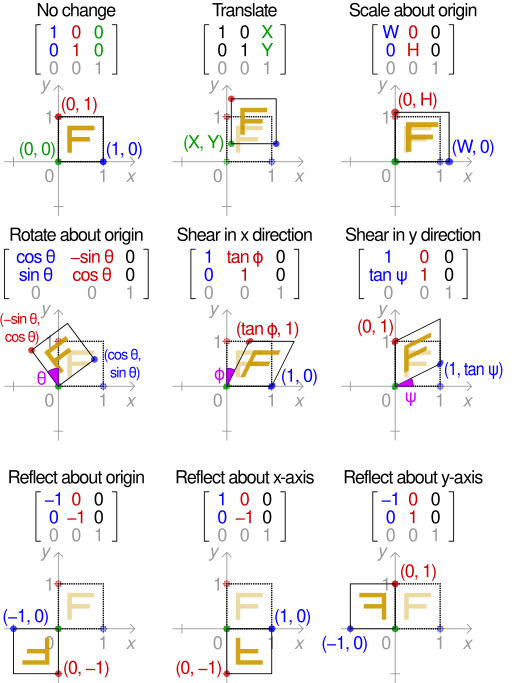

Does anyone have experience with "affine" transformation matrices? I have been trying to implement it into a game engine that does not have a base implementation of it and it has been a brutal experience. Main goal is to support skewing behavior.

>>106010194
You aren't being very specific, but I'd suggest looking at cglm for implementations

>maps are declares as map[keytype]valuetype in Odin
>example: map[u16]quaternion128
Psychotic, mentally ill.

>>105977961
manual face normal flipping
camera ortho/perspective transitions
extrude region still create inner faces sometimes

>>106010002

>>106010717
oh, and vertex transforms are cancelable now, with right click

>>106010717
Very nice. What kind of mesh structure are you using?

>>106010775
not sure what you mean but here are the strucs

std::list<Vertex*> vertexSelection;
std::list<Edge3*> edgeSelection;
std::list<Quad3*> quadSelection;

struct MeshEditable {
¦ std::list<Vertex> vertices;
¦ std::list<Edge3*> edges;
¦ //std::list<Triangle3> triangles;
¦ std::list<Quad3> quads;
};

struct Vertex {
¦ Vector3 position;
¦ Vertex* newCopy;
¦ void* newEdge;
¦ Vector3 previous;
¦ std::list<void*> edges;
¦ std::list<void*> quads;
¦ bool shouldDelete = false;
¦ bool selected = false;
};

struct Edge3 {
¦ Vertex* p0;
¦ Vertex* p1;
¦ Edge3* newCopy;
¦ std::list<void*> quads;
¦ bool regionInner = false;
¦ bool shouldDelete = false;
¦ bool selected = false;
};

struct Quad3 {
¦ Vertex* p0;
¦ Vertex* p1;
¦ Vertex* p2;
¦ Vertex* p3;
¦ std::list<void*> edges;
¦ bool shouldDelete = false;
¦ bool selected = false;
¦ Vector3* triangulated[4];


ill probably need to redo Quad3 into Face. when i began i wasn't sure if i should do faces with multiple triangles or just quads and tris, but now im considering just having Ngons with a vertex count where algorithms that reuire a quad just check this count to see if its 4

>>106010872
>not using n-gons

>>106003072
c3

>>106010872
I just meant like winged edge, half edge, quad edge, etc.

>>106011814
i need to look up the standard solutions, im just brute forcing things, but there are probably smart efficient algorithms and structures already that i should be aware about =/

For a game to be released on Steam, what do players want in terms of quality? Would it be wiser to release ones first game (solo dev) despite non-optimal graphics and a small scope? Are free demos required or even clever? Do people even play demos? What about the pricing? How do you determine that without going too high or too low?

he fell for the zoomer meme

>>106012272
Doesn’t matter how much content your game has. It’s all about presentation and quality.

>>106012272
If you want a no-shit answer to this question the truth is nobody will play your first game on Steam, it will be completely swamped and forgotten by the thousands of other games released every day

>>106012423
That's sad, I hope at least some will play it and have fun. But I suspect as much, especially since I don't have any marketing.

>>106012377
It won't have much content, I'm sure. Had to scope down a lot because it's unfeasable to do something big alone without selling ones soul.
I'll try to polish it then as much as I can.

>>106012525
Marketing won't help either

>>106011950
Lol yeah, it'll definitely help when it comes to traversing the mesh and performing common operations...
Still, there's definitely something to be said for just going for it first, leads to better understanding than being handed the solution right off the bat.

>>106012545
I don't think it's quite as bleak as you put it. That's a bad attitude to have lol.
Realism is useful, but realism also goes beyond self sabotage and doomerism. Any amount of increased exposure increases the chances of getting more traction. I have released other stuff besides games and this is a logical and real phenomenon, which is why proper marketing is important if you want to gather a good audience.
But I appreciate your thoughts on that matter.

>>106012580
Realism is understanding that game developer is very popular and very easy to get into right now, so you need to put in a lot of work to pop off. 5 to 10 years

I'm making progress in my Godot game, but i'ts quickly turning into spaghetti code and lack of order. I come from webshit so the nodes and setting variables on the editor makes me feel lost when tracking specific functionalities. Any good resources on architectural patterns for Godot or making games? Like for example i was expecting pooling every bullet on the game in a single "pool node", but apparently i have to make one for each kind of bullet scene and it rubs me out in the wrong way.
btw the pattern is just a test on the pooling stuff, some guy on the /vg/agdg/ got offended by the pattern for some reason.

>>106013480
Why do you have to manually pool things? You'd think a game engine would do this for you

>>106013480
juan said you shouldn't pool cause instantiation is quick and there is some form of pooling internally already, so you should probably benchmark
gdscript is slow though, so even with pooling you may get shit performance just updating the instances
having multiple pools for different types of things is fine

I don't think learnopengl.com is as good as everyone says.
It has lots of grammar mistakes like it could use a better usage of commas or periods. It doesn't really explain all functions or lines of code shown.
It shows lines of code without explaining where in the rest of the code they're supposed to be ALL THE TIME, and so on...

Anyone has a better resource?

>>106014476
>It has lots of grammar mistakes like it could use a better usage of commas or periods
nigger are you serious

>>106014490
>are you serious
Yes.
I might have explained myself poorly, as english is not my first language. But still, I've read many books and resources in english without a problem. This is harder to read.

>>106014498
well ok, learnopengl is the best resource you're going to get, it doesn't get easier

>>106014503
Hopefully it's just me.
The content is very dense. That's probably just it.

>>106014513
If you have any questions about OpenGL you can ask here

>>106014476
I agree, not a fan of that site. I found vulkan-tutorial.com far better written but of course vulkan is more complicated and tedious.

>>106014513
>The content is very dense. That's probably just it.
Nah, it's just shit.

>>106014519
Thanks anon I'm new to this general but I'll be around. Right now I'm not even sure what questions I have, just trying my best to understand "Hello Triangle".

>>106014537
Thanks anon but, I will try to stick to opengl for now.

I just realized how making the "core" gameplay is the relatively fastest part, everything else takes a lot of time, the main menu, the scoring systems, the pause menu, settings menu, customization, difficulty settings, etc. even making a pong takes its time due to that
>>106013982
I saw a video of a guy talking about pooling and how that improves Godot performance, so I assumed it was necessary specially on a danmaku i'm planing to run on web browsers.
>>106014059
Nice thanks, yea I'm happy with 60 fps, so I'll do my best to keep it and checking with benchmarking

>>106015240
make sure to use the godot profiling tools to see how long it spends on your scripts

Highly recommend Pikamu’s 3d graphics course to get started.

>>106015961
>paying $100 to learn to make a software renderer
Why not just do this for free? https://github.com/ssloy/tinyrenderer/wiki

Or just figure it out on your own. SDL can write a pixel to the screen easy enough, simply elaborate on that.

>>106010194
>skewing behavior
da fack iz dhat sapposed to bee, saar? did you mean shearing behaviour?
"affine" transformation simply means performing transformations relative to a point(rotation, scaling, transformation) or a line(reflection, shearing or skew) respectively.
as shown in >>106010262 picrel, by introducing a third row of [0 0 1] into your preferred form of calculation (either (row vector * matrix) or (matrix * column vector)) for dealing with homogeneous coordinates, you can perform 2D affine transformations with ease.
>>106010717
peak
>>106011405
n-gons are not good for parformance saar
>>106014476
>learnopengl.com
>people usually get filtered by math or C skill issue
>anon gets filtered by engrish
>complains about website's narrative not being to his preference and leaves a bad revies
>requests for better resources as if its a web novel
um... saar... its not THAT bad

>>106014476
>I don't think learnopengl.com is as good as everyone says.
It's the best. That doesn't necessarily mean it's great, or even good.

the best way to use learnopengl.com is just to go to the 2D game section

>>105992556 (OP)
Is it wrong to use AI generated placeholder textures in the prototype stage?

>>106018282
wrong according to who

>>106018282
no, its a prototype

>>106007260
I do similar things, the definitions are usually okay but using it is not always pleasant

>>106018282
As long as you switch them out for non-placeholder AI generated textures before release.

>>105992556 (OP)
I have special array for objects likely to be static to speed up Y-sorting

>>106018282
no rules
only tools

>>106019561
>Optimising for an 80s game
Based

>>106020287
An 80’ game would have 1/5 of that resolution, be written in 6502 assembly, and would easily fit in 32k of ram graphics included.

OP is just a lowkey wanker losing his time

>>106018282
nah im doing that rn. im not planning to sell my game anyway. Also is way faster than having to look for the specific sprites like bullets on those free websites when the quality is more often than not inferior to the ones made with chatgpt

>>106018282
yes. just scribble a picture if you need a placeholder. the danger of AI is that you might trick yourself into thinking it's "good enough", whereas your users/customers will absolutely not think that.
