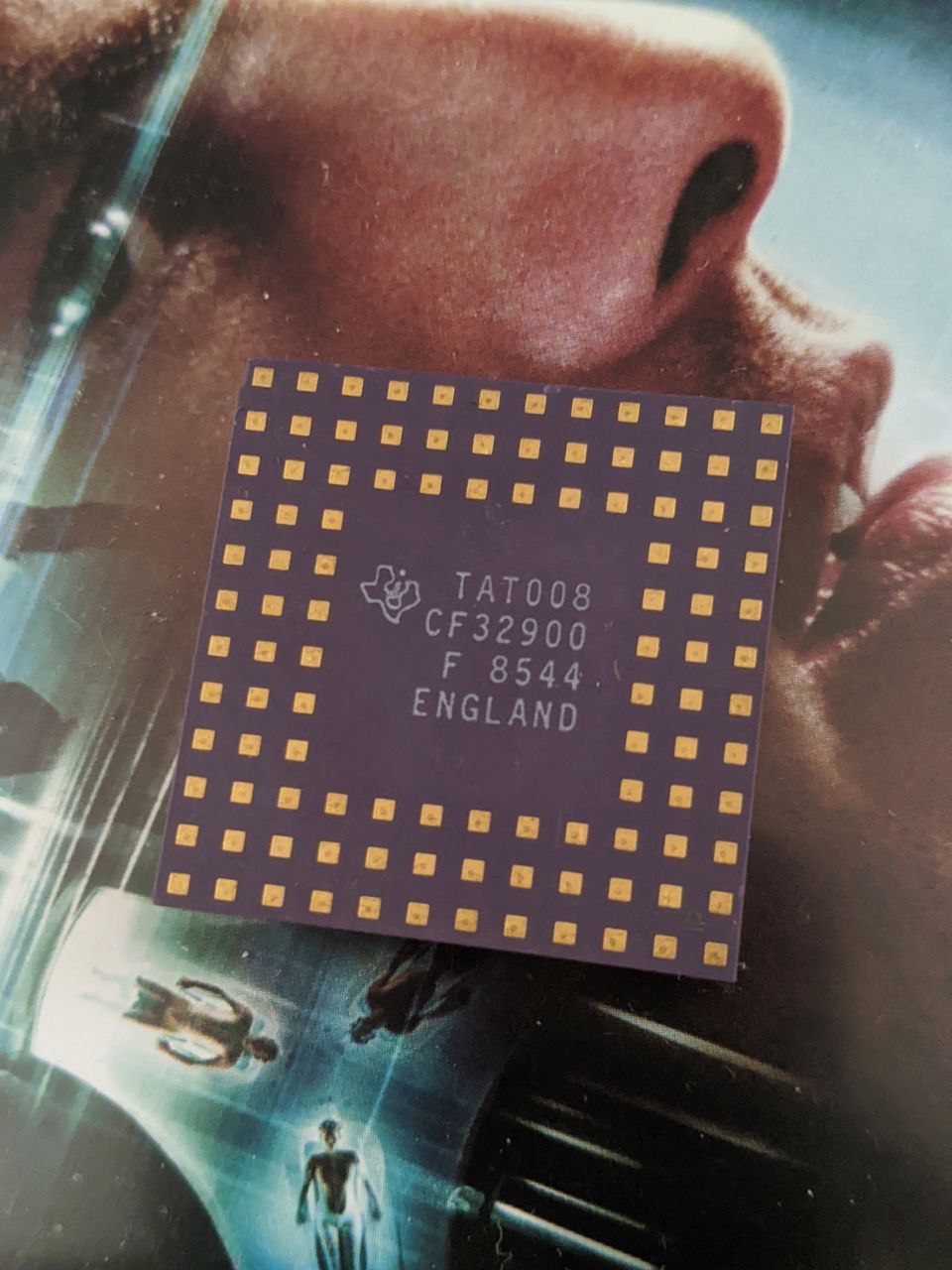

Anonymous 8/18/2025, 8:04:58 PM No.106304233 >>106304260 >>106304272
1744932174002021.jpg md5: 43378a58... 🔍
What the fuck is this gridded thing? Its underside has pins.
Anonymous 8/18/2025, 8:07:07 PM No.106304260
>>106304233 (OP) (checked)
It's called SOVL, you wouldn't get it.
Anonymous 8/18/2025, 8:07:44 PM No.106304269 >>106304346
Looks like a early military integrated circuit made by Texas Instruments. I can't find anything on it going off whats written on it.
Anonymous 8/18/2025, 8:08:04 PM No.106304272
>>106304233 (OP)
>tatoo
Press it hard against your skin and see what the image is.
Anonymous 8/18/2025, 8:14:03 PM No.106304346
>>106304269
I thought it would be some kind of old IC but didn't want to assume its nature. I've got five of them.

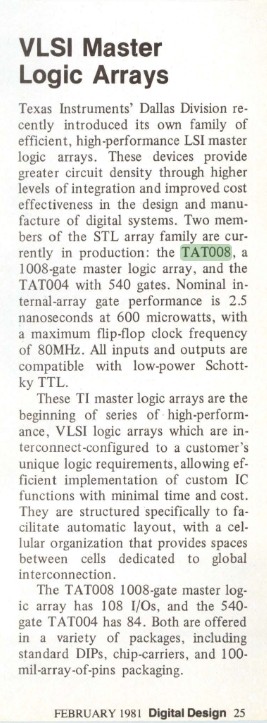

Anonymous 8/18/2025, 8:21:39 PM No.106304428 >>106304455 >>106304467
VLSI_Master_Logic_Array.jpg md5: 62b26403... 🔍
https://www.ebay.co.uk/itm/282912863725
https://bitsavers.org/magazines/Digital_Design/Digital_Design_V11_N02_198102.pdf
Anonymous 8/18/2025, 8:24:31 PM No.106304455
>>106304428
There are like 3 other magazines that I found if you need more. LMK
Anonymous 8/18/2025, 8:25:53 PM No.106304467 >>106304641
>>106304428
Wow well done. So it's something not unlike an FPGA?
Anonymous 8/18/2025, 8:38:36 PM No.106304641 >>106304798
>>106304467
No clue, honestly. I just found what it was to be helpful. I'm out of my league on embedded systems, sorry.
Anonymous 8/18/2025, 8:49:53 PM No.106304798 >>106305135
>>106304641
Thanks anyway, I couldn't find shit.
Anonymous 8/18/2025, 9:22:15 PM No.106305135
1755540298784898 - Copy.jpg md5: b2314ac6... 🔍
>>106304798
Maybe someone more knowledgeable can help you out.
