Anonymous No.4429552 >>4429583 >>4430060 >>4430450 >>4431885
Does /p/ approve of IR / full spectrum photography? Is it legit or a meme? It seems it is mostly used for landscapes, but I'm wondering what else you could explore with it, outside of forensics and other nerd shit.
Anonymous No.4429583 >>4430060 >>4430596
>>4429552 (OP)
I'm the ceo of /p and I'll answer both:
1- it's a gimmick. Only changes colors in an unusual way. Sadly it doesn't do anything that interesting. Just a complex filter. Since humans can't see that way it just looks off and alien. Any full spectrum photography will take center of attention away from the picture and towards it's weird color palette.

2- It's legit. Filters are part of photography, and showing something new can always be interesting. Photography is about showing reality in a different way that we usually see it, making the viewer feel a certain way about something that can be very common. And colors play a role in creating emotion. If used correctly full spectrum photography can be used to create an atmosphere and emotions you wouldn't have through a visible spectrum photo.
Sugar !egyYvoBZV2 No.4430060 >>4430098 >>4430450 >>4430592 >>4430608 >>4445561
>>4429583
>>4429552 (OP)

I am one of the few on /p/ who has actually done IR and posted here with it so I'll break it down for you.

IR lets you get away with shit that normal cameras can't do. In color the moon on this shot was not very visible and had a fair amount of haze in front of it. IR doesn't care about that.

There are a few caveats. When you are shooting at large apertures and close distances, your camera will autofocus on something but it will appear out of focus on the image, that's because of how light travels on the IR spectrum. I can't remember the exact physics but it's kind of the same reason shit underwater doesn't focus the same as it does on the surface, visible light and IR are different wavelengths and camera's AF system only sees visible light.

When you are shooting at large apertures and at things far away, this effect isn't really noticeable, which is why it's great for landscape. If you are working with older lenses or anything manual focus they usually have IR marks you can focus through the viewfinder and then adjust using the IR mark on the distance scale.

Avoid shooting through car windows, most modern cars have IR coating on the windows and you won't get much of an image because the glass is filtering out the UV spectrum, or most of it.

It's mostly a gimmick, but a really cool looking one. You can do some really neat shit with infrared but you have to train yourself to be able to "see" in IR, so that you're shooting things like trees that contrast with the background, although on digital it's easy because you can see the result right there.
Sugar !egyYvoBZV2 No.4430061
this is now an IR thread.
Sugar !egyYvoBZV2 No.4430062
These were all done on a D300 converted to IR and either a 200-500/5.6 Nikkor VR for the long stuff with the moon and an 18-200 VR or Tokina 11-20/2.8
Sugar !egyYvoBZV2 No.4430063 >>4430103 >>4433456 >>4446078
The other neat thing about IR is it's an easy BW conversion if you're looking for that really dark sky to contrast with clouds
Anonymous No.4430068
I should try IR again since it's so HOT out
Anonymous No.4430074
Thanks for sharing those photos, anon. It reminds me of like the Skesis fortress from The Dark Crystal (compliment) or as if it was taken on another planet. Does IR still require modifying an entire camera just to be solely for IR?
Anonymous No.4430087 >>4430106
Bought a full spectrum modded Nikon D70s a few months ago. I'm currently using it with the 18-55 kit lens and a 550nm filter from Aliexpress.

I learned it the hard way that I should've done a bit more research before hand, IR/FS modded DSLRs need to be calibrated or something for every lens. Now the kit lens seems to shoot the sharpest photos w/autofocus on about 38mm and 55m focal length.

How much of a pain in the ass is it to calibrate the camera? Is it trial and error?
Anonymous No.4430098 >>4430100 >>4430106
>>4430060
About AF, would this work better with mirrorless cameras, which use the actual image for determining focus?
Anonymous No.4430100 >>4430101 >>4430106
I really like the look of superpanchromatic film with no filter. I think this would be roughly equivalent to a full spectrum camera but you'd always convert to b&w. False color usually looks like shit anyway.
>>4430098
Yes mirrorless is way better for IR conversion. It's just even the crappy old ones are still expensive and people don't want to spend that on a gimmick so they convert dslrs and cope with the consequences.
Anonymous No.4430101
>>4430100
Early sony aps-c ones are dirt cheap now though, they might be garbage, I wouldn't know.
Anonymous No.4430103 >>4430106
>>4430063
So for this, you would need to install a filter, or is full spectrum conversion enough?
Sugar !egyYvoBZV2 No.4430106 >>4450268
>>4430103

Mine just has a filter in front of the sensor. That's how they get converted. The spectrum of light captured depends on the filter placed in front of the sensor. If you're using DSLR and slap an IR filter in front of the lens you won't see anything in the finder, that's why people convert them.

It depends on what you want the output to look like, most places that do the IR conversion explain this in much greater detail than I could on here, honestly this is one of those things I know how it works and what needs to be done to get there but I can't exactly explain the different spectrums and what they do.

>>4430100
>>4430098

absolutely. Early Sony A7's are cheap, hell I paid less for my A7S three years ago than I paid for my D4 in December of 2024.

There's nothing wrong with older DSLRs for conversion, most of them are only good for that these days. I do quite love my D300 IR and all of my lenses already work on it, that's something to think about for choosing a body for conversion.

>>4430087

I never had these problems? I mean, I did cal my body to the lenses I have but only to correct for the lens itself and I did that in the menu, Nikon has a lens calibration menu I believe under Shooting or maybe Setup. Its been a minute.
Anonymous No.4430129 >>4430152 >>4430178 >>4430608
i've shot IR (850nm sensor mod) exclusively for the past 3 years. axe me anything.
Sugar !egyYvoBZV2 No.4430152
>>4430129

That's fuckin cool
Anonymous No.4430178 >>4430180
>>4430129
>axe me anything.
let's see some more
Anonymous No.4430180 >>4430181 >>4446079
>>4430178
this is a normal kfc bucket.
except in IR ... red ink is transparent.
Anonymous No.4430181 >>4430182
>>4430180
I dig it.
What's your equipment btw?
Anonymous No.4430182 >>4430238
>>4430181
fujifilm xt1 with kolari sensor mod. various old/new lenses (some hotspot more than others)
capture one for RAW processing.

<< modern cash has IR reflective ink that is invisible to the eye.
Anonymous No.4430198 >>4430293

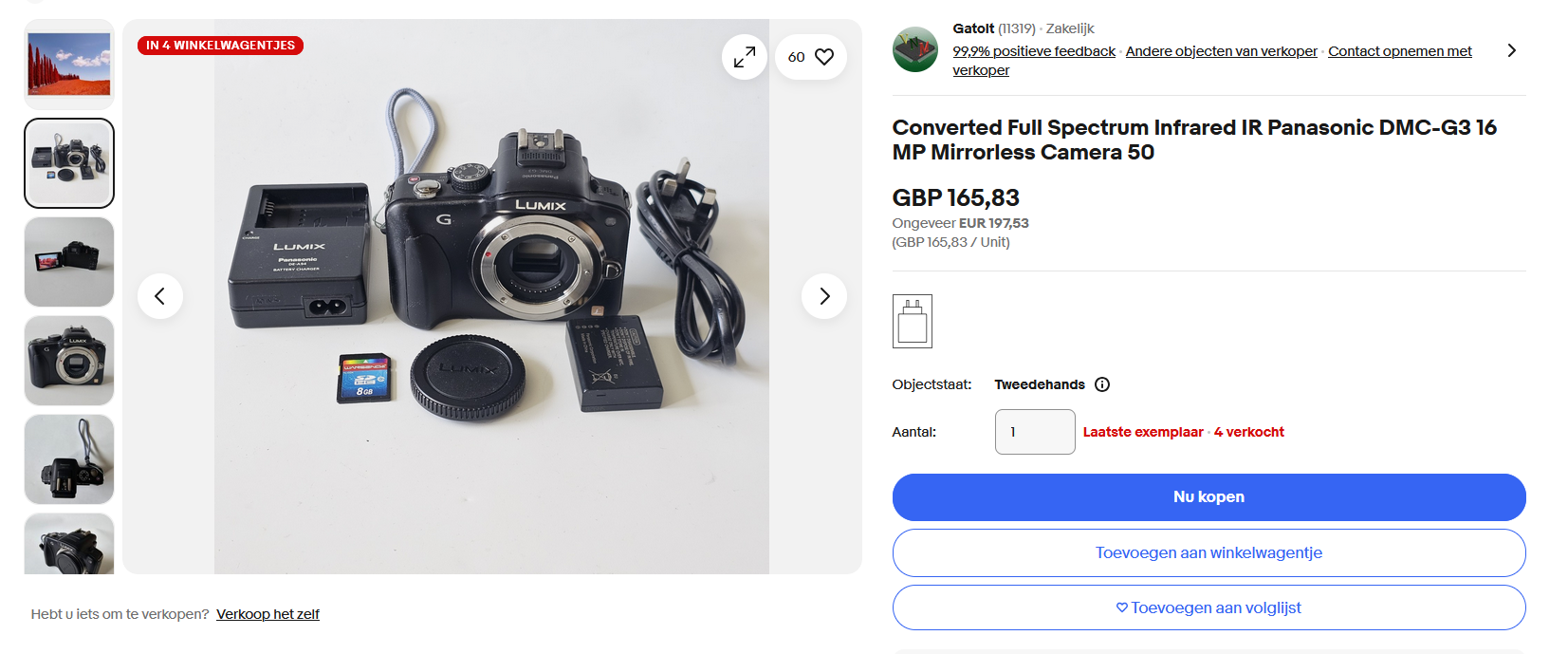

IS this a good deal? It's kinda tempting because you normally pay more than that for the conversion. For the sake of argument let's assume m43 is good enough for me ;).

In the actual text it becomes clear that it is actually a full spectrum conversion with a clear replacement filter, so for IR a lens filter is required.
Anonymous No.4430204
Erdogan strijder op de draad.
Sugar !egyYvoBZV2 No.4430238 >>4430261 >>4430293
>>4430182

How do i get around hotspot? I've noticed a few of mine bloom in the middle
Anonymous No.4430261
>>4430238
depends on the lens, but i've found the smaller the aperture, the more hotspot you'll see. f/1.2 to f/5.6 is better than f/8+
also, i'll negate the effect in cap one with creative adj layer. not perfect, but it works OK.

<< color fuckery of IR trees/clouds
Anonymous No.4430293 >>4430480
>>4430198
looks like a good deal to me if four turds is your thing
There's not much reason to do anything other than full spectrum for mirrorless unless you're very sure what filter you want. With DSLR the downside is you can't see through the viewfinder but with EVF that problem goes away entirely.
>>4430238
kolari did a pretty thorough investigation https://kolarivision.com/the-science-of-infrared-hotspots
The main thing is choosing the right lens. They also have a table of good and bad lenses for various mounts.
Anonymous No.4430450 >>4430451 >>4430659 >>4435739
>>4430060
>>4429552 (OP)
wtf this shit is kino, give me the rundown on IRtography
Anonymous No.4430451 >>4430598 >>4435740
>>4430450
>reject dslr, retrvn to mirrorless
>full spectrum mod + filters you like
>take photos, edit in lightroom or whatever


check some videos/writeups on the whole process before going for it
Sugar !egyYvoBZV2 No.4430480
>>4430293

thank you, seems I have a few winners on that Nikon list there. I have a Tamron 16-300 that does fairly well at all apertures, nice walkaround lens great for IR
Anonymous No.4430592 >>4445561
>>4430060
This man knows
I shoot a lot of IR too, i use a Tamron lens from the 80s and shoot hand held. I try to be an IR chad
Anonymous No.4430596
>>4429583
I knew Americans were dumb but this is on another level! It only changes the colors he says! HAHAHAHAH
Anonymous No.4430598
>>4430451
DSLRs have nothing to do with it, if anythig I would recommend anyone get a used DSLR to convert it, if you're a useless idiot then maybe spending 10x the price to get a mirrorless would be justified, but mailing it to some faggot to "convert" it is unjustifiable, might as well ask chatgpt to fake the photos for you since you're such a little bitch
Anonymous No.4430608 >>4430631 >>4430632 >>4433684 >>4445561
>>4430060
>>4430129
I have a spare body I want to convert and the service I'm gonna use offers a bunch of options, I'm leaning towards getting a red foliage (550nm) instead of full spectrum since I know for a fact I'm not gonna buy filters for all my lenses
anybody got experience with that or what would it take to make the most of such conversion?
Anonymous No.4430631 >>4432060
>>4430608
There are clip in/magnetic filters for certain cameras that give you the versatility of full spectrum without the misery of screw in filters. But the same DSLR vs mirrorless tradeoff applies since it goes in front of the mirror box.
If you're set on a permanent conversion, download the sample RAWs from lifepixel and play around with them. That should give you an idea of what's involved on the processing side.
Anonymous No.4430632
>>4430608
are you actually paying for a conversion to be done when it takes like 3 hours to do it yourself for free
all you need is a piece of glass to replace the IR filter
Anonymous No.4430659
>>4430450
it's how the world looks to a tesla.
Anonymous No.4430771 >>4431821
<< ir can see thru materials.... like skin.
Anonymous No.4431821 >>4431939
>>4430771
This is why camera companies don't sell their IR camera at consumer level.
Fuji sells GFX IR version but only for researchers or organizations.
When you shoot it under 1/8000 level sunny day you can easily take see through pussies of women on street and athletes on track
Anonymous No.4431822
Anonymous No.4431885
>>4429552 (OP)
Flesh Simulator detected, glad to see you're hiding in /p/
Anonymous No.4431939
>>4431821
IR Haiku:
god bless yogapants
unless they hide a secret
i dont like sausage
Anonymous No.4431947 >>4432535 >>4434547 >>4434561
Any camera that happens to be piss easy to convert?
Anonymous No.4432060
>>4430631
yeah I wanna convert older Pentax dslr and use my old pentax glass and soviet m42 lenses, clip in filters aren't an option for me I'm afraid
Anonymous No.4432488
low-budget jwst
Anonymous No.4432535
>>4431947
sony F707 and 828 can shoot IR by just putting a magnet in a certain spot
Anonymous No.4433456
>>4430063
This looks like the sorta shot you'd have in a music video.
Anonymous No.4433524 >>4436626
Would a 1Ds mk.2 be a good camera for IR conversion?
Anonymous No.4433684
>>4430608 Get filters for your largest filter thread diameter lens and down adapters for your other lenses. Chink ones are rather rough but cheap enough you can have one for every lens you have.
Anonymous No.4434047
It's a gimmick, but I think it's a cool gimmick, especially if you can do it cheap by buying some IR Black and White film or convert some cheap point and shoot.
Wanna try both in the near future.
Anonymous No.4434505 >>4434509
So if I'm just after some dramatic monochrome images, is a full spectrum conversion enough, or do I go for a filter?
Anonymous No.4434509 >>4434544
>>4434505
Full spectrum sometimes includes UV. I'd avoid UV (unless you like it).
Never used a lens.filter on my modded XT1. Could be useful, but not my bag.
I suspect modding the sensor.glass.filter also removes AA filtering. This is a good thing.
Anonymous No.4434544 >>4435020
>>4434509
Have you ever made a thread and dump all those? If not mind making one? I like em and would like to see the whole work
Anonymous No.4434547
>>4431947
Nikon d70 and cheap too
Anonymous No.4434561
>>4431947
D50 wasn't too bad, but something that should probably be obvious, you really need something with a digital viewfinder if you want to shoot in IR only.
Anonymous No.4434861 >>4434921
Anonymous No.4434869 >>4434921
Anonymous No.4434921
>>4434869
>>4434861
What wavelength is this?
Anonymous No.4435020
>>4434544
never dumped an organized album, just nuggets in threads.
feedback on my ir edits is encouraged. i'm making it up as i go.
Anonymous No.4435739
>>4430450
Been doing this for years and really enjoy IR and other long exposure set ups. I use IR filter, take photo of bright green foliage in daylight with filter on and set that as custom white balance. Then just set to manual mode and shoot. For me with filter on unmodified camera I’m normally shooting 5-30 seconds on tripod
Anonymous No.4435740
>>4430451
This is cool photo. Do you use particular swap presets? I’m in darkroom and don’t automatically get that nice pink after swapping and don’t
Anonymous No.4436269 >>4436624
so. many. gnats.
Anonymous No.4436624 >>4436625 >>4436698 >>4437298 >>4442284
>>4436269
Interesting to see wildlife infrared, hope you have more. Testing larger file size. I used to get full size images of Flirkr and now it seems terrible and only low resolution crap available for download.
Anonymous No.4436625
>>4436624
Infrared works really well in very green areas. The bleached out plants gives a lot of good contrast you don't get otherwise. Natural camouflage works a little too well sometimes.
Anonymous No.4436626
>>4433524
There’s a list floating around regarding suitability of various cameras for IR. I’m using a 5D and I find it works great for IR. Another compression test.
Anonymous No.4436698 >>4437173
>>4436624
Really like the colors here.

Deer visit daily, sometimes bears.
Try nighttime long exposure, esp. in light polluted areas. really nice coloring potential.
Anonymous No.4437173 >>4437298
>>4436698
Thank you but I think maybe it’s oversaturated and maybe underexposed as well. This one is dialed back on the saturation and came out well, it’s a forest that burned down a few years back. Do you have any examples of the night IR you’re referring to? I can’t imagine the exposure time with unmodified camera if these are 8 seconds in broad daylight.
Anonymous No.4437298 >>4437339
>>4436624
>>4437173
Are these IR or full spectrum?
(NTA)
Anonymous No.4437312
I went with a 830nm IR conversion on my A6000 that blocks pretty much every wavelength except IR. It means I can only do black and white, but I'm OK with that.
Anonymous No.4437339
>>4437298
These are shot on unmodified 5dm4 with IR filter with tripod. Then in post they get RB channel color swap. Out of the camera they have a touch of color and I can try to find an example. Here’s another one from my last shoot about a week ago after processing.
Anonymous No.4437969 >>4438438
capture one color voodoo from RAW
Anonymous No.4438438
>>4437969
I like some color with infrared, even just a little like here. This is what I get out of the camera prior to RB swap. I generally swap color and adjust to try to get a sky that resembles the tone of an ordinary mid day sky.
Anonymous No.4442284 >>4443395
>>4436624
it looks like a collage. like someone took the background sky from a different image
Anonymous No.4443395
>>4442284
I think that’s from over saturation of the image. I’m working more on controlling the excessive blues while maintaining the reds and pinks. Is there a way to control the hot pixels in dark table without using raw files? I don’t mind them too much but wish they weren’t quite so bright. Here’s another from a new shoot last week.
Anonymous No.4443524
Does not enjoy fireworks.
Anonymous No.4443623 >>4443689 >>4443744 >>4443812
Do you think we can ever get contacts to make us see like this
Anonymous No.4443689
>>4443623
Best product would have to be AR device that can see/augment IR into human's range. One BIG roadblock is that it would allow 'x-ray' vision of certain fabrics.
Anonymous No.4443744
>>4443623
Eventually you can just tell your brain's AI subunit to switch your eyes to IR mode
In 2200
Anonymous No.4443812 >>4443975 >>4445561
>>4443623
I think there is a rare condition that allows people to see ir
Anonymous No.4443958 >>4445561
happy paid holiday, everyone.
Anonymous No.4443975
>>4443812
Human eyes can see a tiny bit in the infrared spectrum, but actually quite a lot in UV, our cornea just filters it out.
Anonymous No.4444055
I do false color near infrared on a Sigma SD1 Merrill with the hot filter swapped for a Green X1 filter, which ends up pretty aerochrome like. Wouldn’t recommend it unless you like shooting very slow.
Anonymous No.4445561 >>4445563 >>4445612 >>4446026
>>4430060
>camera's AF system only sees visible light.
close but wrong
your AF system is calibrated to visible light. IR has a substantial enough difference in refractive index to visible light that it will be out of focus if you're using body AF
if your camera has live view AF, it will focus correctly because it uses local contrast points which will focus correctly even with IR
>>4430608
don't filter in body, it doesn't make sense. There are enough IR filters that you can stick on the lens that anything other than full spectrum doesn't make sense
>>4443958
this one's really great
>>4443812
you can see short IR, there are just very few situations where your retina's not getting absolutely assaulted by visible and UV while short IR is plentiful enough to see
You can even "see" all the way up to X-rays as well.
>>4430592
is this Aerochrome or just a LUT?
Anonymous No.4445563 >>4445566
>>4445561
Anonymous No.4445566 >>4445567 >>4446009
>>4445563
Anonymous No.4445567
>>4445566
Anonymous No.4445612
>>4445561
Its not a LUT. I have A LOT of it, years worth...
Anonymous No.4446009
>>4445566
FOCUS!!!
Anonymous No.4446026 >>4446027
>>4445561
I’m currently using just AF and having good luck focusing as far as I can tell. On the other hand most of my compositions tend to use mid ground as the focal point so I assume it makes focus more forgiving.

Tried to re edit this to bring better unity so sky doesn’t have the copy paste look. As before it’s mostly an issue of correction of blue over saturation on the RB swapped image (too much red in images out of the camera). I took one picture of grass a year ago that I use for my custom white balance
Anonymous No.4446027
>>4446026
Forgot pic
Anonymous No.4446078
>>4430063
This is an excellent shot
Anonymous No.4446079
>>4430180
Looks like the view of "They Live" special sunglasses
Anonymous No.4446133
Anonymous No.4447651
Anonymous No.4447945
Turns out a Handycam with nightshot works pretty well as a IR camera. Tape an IR passthrough to the front of it and it's good to go.
Anonymous No.4448092
ir + relight fx
Anonymous No.4448097
ir/rl
Anonymous No.4450268 >>4450273
>>4430106
This thread has me interested in converting my old A7 to full spectrum, then getting filters.

Is this a good idea. Can a monkey brain combined with YouTube and google pull it off? Not interested in paying someone to do it.

Would experienced IR folks recommend full spectrum?
Anonymous No.4450273 >>4450335 >>4451574
>>4450268
Never mind looked at the life pixel tutorial and I will surely mess this up.

Would IR be interesting for street photography if you can shoot at a fast enough shutter speed?
Anonymous No.4450335 >>4451574
>>4450273
Not really. It doesn't really change much unless you're shooting foliage.
Anonymous No.4450922
Anonymous No.4451574 >>4452019
>>4450335
Wrong, it makes skin look way different, real soft and glowy, smooths out wrinkles and such.
>>4450273
Do it. Full spectrum will get you +1-2 bonus stops and if you convert to b&w you should get something like rollei retro 80s.
Anonymous No.4452019
>>4451574
Tempted. I don’t use the A7. It looks like a pain in the ass to do yourself any recs for a service?

I converted a lil digi shit years ago but it was much less complex than the A7
Anonymous No.4452096
I took this with the Fuji x100vi handheld with a R72 filter
Anonymous No.4452143
do you ever look for blur-ghosts?
i found god in this one.
Anonymous No.4452170
Anonymous No.4458033 >>4458064
eggs are weird in ir.
Anonymous No.4458036 >>4458064
same egg, more slider.
Anonymous No.4458064
>>4458036
>>4458033
Wow. Very cool.
Anonymous No.4461932
small ir flashlight shines thru weak flesh revealing the bones & blood within.
